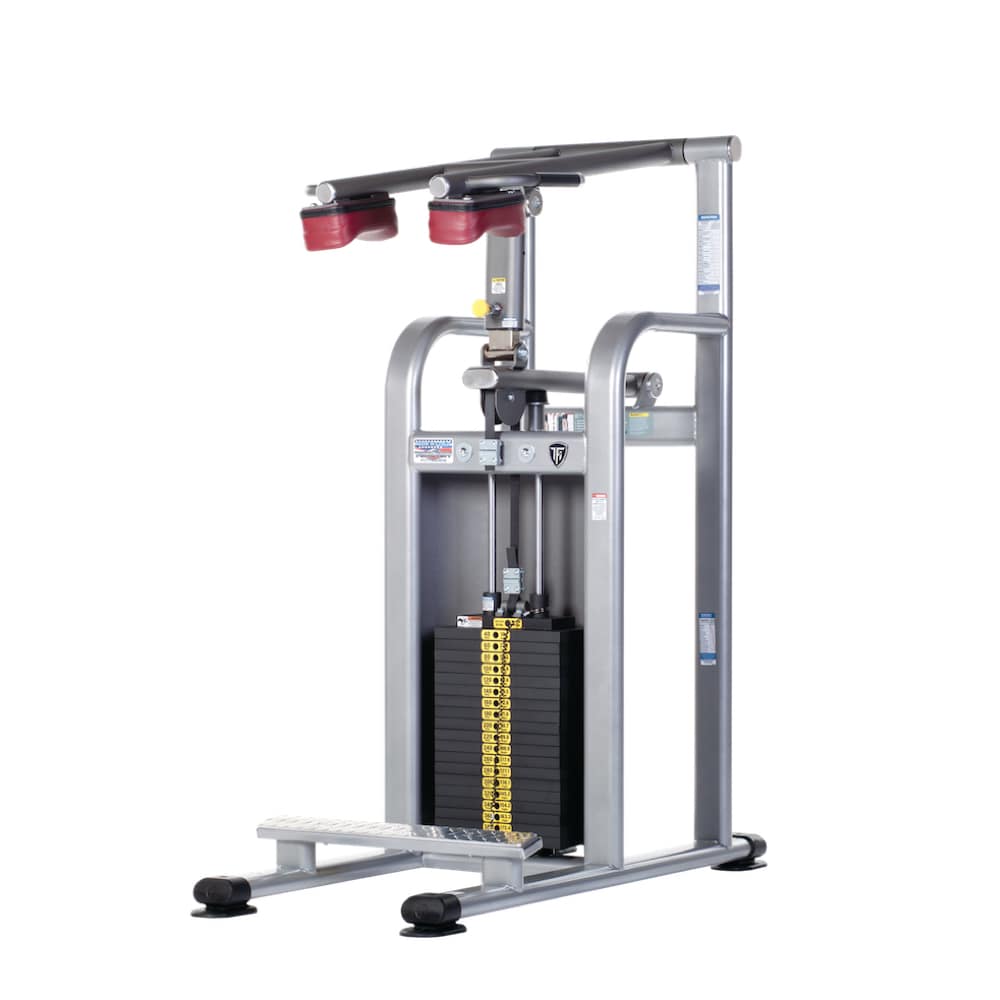

TuffStuff Proformance Plus Standing Calf



Call for Pricing





TuffStuff’s Proformance Plus Standing Calf (PPS-238) is a full-commercial quality machine, crafted in Chino, California, USA.  Featuring high density contoured shoulder support, the Proformance Plus Standing Calf seamlessly adjusts to accommodate different user heights and ranges of motion. Backed by an extensive warranty, the Proformance Plus Standing Calf is ideal for outfitting any commercial weight room, recreation center, apartment complex or professional gym.

      • Engineered and Manufactured in the USA
      • Non-slip aluminum foot platform angled for proper body alignment
      • Direct linkage pivot arms ensure true and balanced movement
      • High density pads with contoured shoulder support
      • High strength Mectral steel reinforced Kevlar® belt transport system
      • (6) primary frame colors and (16) upholstery colors available
      • Standard 220 lbs. steel weight stack with add-on weight system
      • Optional 295 lbs. weight stack available
      • Shipped assembled for easier installation and setup



Description

Spec Sheet - Proformance Plus Standing Calf

TuffStuff’s Proformance Plus Standing Calf (PPS-238) is a full commercial machine for developing calf muscles.  Surprisingly, calf training is frequently overlooked by strength, power, and fitness athletes and coaches.  Many think that isolated calf training is not an effective use of training time.  However, whether walking, running, pulling, or performing nearly any other upright exercise, the first base of support we have with the floor is via the foot and up through the ankle.  “When performing strength and power movements, ankle stability and force production can impact our ability to perform at higher intensities.  Seeing that the standing calf raise can strengthen our ability to plantarflex (place pressure downwards into the floor through the foot), most strength and power athletes will find benefit in growing stronger calves” (read more on barbend).

The Proformance Plus Standing Calf High includes density pads with contoured shoulder support adjust to accommodate individual height and range of motion.  It comes standard with a 220 lbs. solid steel weight stack and accepts TuffStuff’s patented add-on weight system.  The weight stack may also be upgraded to the optional 295 lbs. stack.  Like all Proformance Plus equipment, the Standing Calf may be customized, and is backed by a 10-year commercial warranty covering the frame, welds, cams, and weight plates.





Proformance Plus Customization

The Proformance Plus Standing Calf finish colors may be customized.  Request a color sample that matches your company’s branding.

Frame Colors:

TuffStuff Proformance Plus Frame Colors

Note: Finishes as shown are close representations of the actual powder coat colors.  Please do not use for an exact color match.  Always request actual color samples from your dealer or TuffStuff Sales Representative.

Upholstery Colors:

Note: Color samples as shown are close representations of the actual vinyl and finish colors, and MUST NOT be used for an exact match of the color.  Always request actual vinyl samples from your dealer or TuffStuff Sales Representative.



Specifications

Weight 670 lbs
Dimensions 57 × 26 × 58 in
Commercial Warranty COMMERCIAL WARRANTY

10 YEARS: Frames, welds, cams and weight plates.

5 YEARS: Pivot bearings, pulleys, bushings, gas-shocks, and guide rods.

1 YEAR: Belts, linear bearings and pull-pin components.

6 MONTHS: Upholstery, cables, finish and rubber grips.

ALL OTHER PARTS not mentioned, one year from the date of purchase to the original purchaser.

Frame Main frame – 2×4” 11-gauge 120 wall oval tubular steel with a combination of 2” round and other 11-gauge tubular steel.

All welded construction conforming with all Structural Welding Code-Steel Standards and Specifications.

Padding High density 1” thick 3 lbs. rebond urethane foam glued to 1” industrial plywood backing, trimmed and formed to exact fit.
Cables & Belts Cable driven units – USA-Made/Certified 3/16” and 1/4” EXERFLEX PRO® high performance fitness cable rated at 4200 lbs. tensile strength. Belt driven units: reinforced Kevlar® belts, rated at 4400 lbs. tensile strength.
Finish Powder coat finish baked at 400ºF and carefully monitored to ensure complete curing.

Custom two tone finish offers choice of six primary colors combined with Charcoal Texture accents. Custom colors available, please inquire with your sales representative.

Upholstery Premium Bolta Sport vinyl with PreFixx, formulated to resist bacteria, stains, mildew, oil and UV stabilized pigments. Meets most flammability test requirements. All upholsteries are double-stitched with “hidden” borders. Bolta Sport color swatches are available upon request.

Sixteen standard colors. Custom colors are available – please inquire with your sales representative.

Weight Stack Black painted solid steel weight plates with self aligning low friction sleeves. Includes 220 lbs. steel weight stack with add-on weight system. (Optional: 295 lbs. available)
Other Specs GUIDE RODS: 3/4” solid steel 1045 (tgp) highly polished hard chrome finish.

ADJUSTMENT PINS: 1/2” and 5/8” push-pull spring loaded solid steel adjustment pins with ultimate load of 9040 lbs. and 46042 psi sheer strength.

BEARINGS: 1” solid stainless steel pivot axles with non-friction 2” sealed bearings (load rating of 2400 lbs.) internally encased on primary pivots, and oil-impregnated bronze bushings on all secondary pivots.

PULLEYS: Combination wide grove fiberglass reinforced nylon pulleys on belt-driven system and solid aluminum pulleys on cable units.

CAMS: Charcoal Texture powder coat solid aluminum variable resistance cam designed specifically for each machine.

FASTENERS: All frame bolts and nuts are 3/8” and 1/2” blue zinc plated grade 8 and up. Meets ANSI specifications.

CUSTOM STABILIZER FEET: Heavy-duty molded rubber base feet insure stability, prevent equipment movement, and may be bolted to the floor.

SELECTOR WEIGHT PINS: Weight pins are solid steel, magnetic with ball-end to ensure a tight connection and secure fit. Coiled lanyard helps prevent pin removal and loss.
