Description

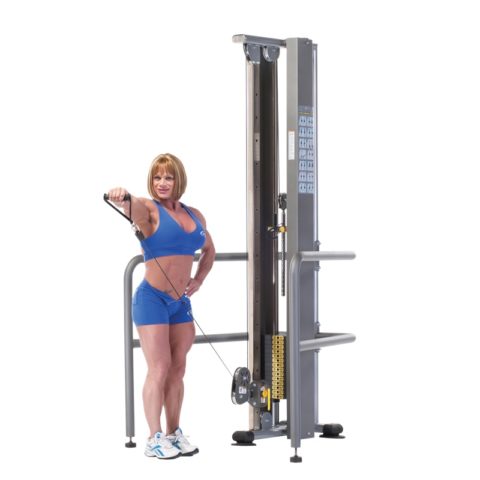

The Proformance Plus Single Cable Column (PPMS-240) includes 15 high/low pulley positions and 86-inches of cable travel per handle. And the ball bearing swivel pulleys increase fluidity and cable response for more effective sport specific training. Like all Proformance Plus equipment, the Single Cable Column may be customized, and is backed by a 10 year commercial warranty covering the frame, welds, cams, and weight plates.
The Proformance Plus Single Cable Column includes 150 lbs. weight stack (optional 200 lbs. available) with resistance loads in 2.5 lbs. or 5 lbs. increments (must be specified at time of purchase).
- 1 : 1/2 weight resistance for fitness facilities, or 1 : 1/4 weight resistance for rehab and wellness training
Proformance Plus Customization
The Proformance Plus Single Cable Column finish colors may be customized. Request a color sample that matches your company’s branding.
Frame Colors:
Note: Finishes as shown are close representations of the actual powder coat colors. Please do not use for an exact color match. Always request actual color samples from your dealer or TuffStuff Sales Representative.
Specifications
| Weight | 380 lbs |
|---|---|
| Dimensions | 42 × 48 × 90 in |
| Commercial Warranty | COMMERCIAL WARRANTY
10 YEARS: Frames, welds, cams and weight plates. 5 YEARS: Pivot bearings, pulleys, bushings, gas-shocks, and guide rods. 1 YEAR: Belts, linear bearings and pull-pin components. 6 MONTHS: Upholstery, cables, finish and rubber grips. ALL OTHER PARTS not mentioned, one year from the date of purchase to the original purchaser. |
| Frame | Main frame – 2×4” 11-gauge 120 wall oval tubular steel with a combination of 2” round and other 11-gauge tubular steel.
All welded construction conforming with all Structural Welding Code-Steel Standards and Specifications. |
| Finish | Powder coat finish baked at 400ºF and carefully monitored to ensure complete curing.
Custom two tone finish offers choice of six primary colors combined with Charcoal Texture accents. Custom colors available, please inquire with your sales representative. |
| Cables & Belts | Cable driven units – USA-Made/Certified 3/16” and 1/4” EXERFLEX PRO® high performance fitness cable rated at 4200 lbs. tensile strength. Belt driven units: reinforced Kevlar® belts, rated at 4400 lbs. tensile strength. |
| Padding | High density 1” thick 3 lbs. rebond urethane foam glued to 1” industrial plywood backing, trimmed and formed to exact fit. |
| Upholstery | Premium Bolta Sport vinyl with PreFixx, formulated to resist bacteria, stains, mildew, oil and UV stabilized pigments. Meets most flammability test requirements. All upholsteries are double-stitched with “hidden” borders. Bolta Sport color swatches are available upon request. Sixteen standard colors. Custom colors are available – please inquire with your sales representative. |
| Weight Stack | Black painted solid steel weight plates with self aligning low friction sleeves. 150 lbs. weight stack (optional 200 lbs. available). Resistance loads available in 2.5 lbs. or 5 lbs. |
| Other Specs | GUIDE RODS: 3/4” solid steel 1045 (tgp) highly polished hard chrome finish.
ADJUSTMENT PINS: 1/2” and 5/8” push-pull spring loaded solid steel adjustment pins with ultimate load of 9040 lbs. and 46042 psi sheer strength. BEARINGS: 1” solid stainless steel pivot axles with non-friction 2” sealed bearings (load rating of 2400 lbs.) internally encased on primary pivots, and oil-impregnated bronze bushings on all secondary pivots. PULLEYS: Combination wide grove fiberglass reinforced nylon pulleys on belt-driven system and solid aluminum pulleys on cable units. CAMS: Charcoal Texture powder coat solid aluminum variable resistance cam designed specifically for each machine. FASTENERS: All frame bolts and nuts are 3/8” and 1/2” blue zinc plated grade 8 and up. Meets ANSI specifications. CUSTOM STABILIZER FEET: Heavy-duty molded rubber base feet insure stability, prevent equipment movement, and may be bolted to the floor. SELECTOR WEIGHT PINS: Weight pins are solid steel, magnetic with ball-end to ensure a tight connection and secure fit. Coiled lanyard helps prevent pin removal and loss. |
