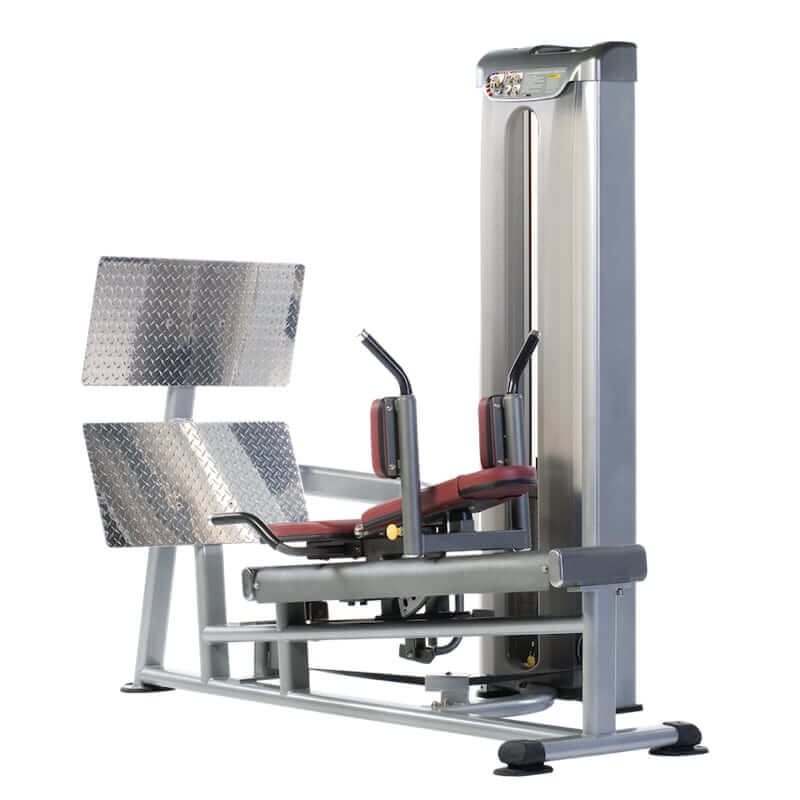

TuffStuff Proformance Plus Leg Press / Hack Squat

Call for Pricing



TuffStuff’s Proformance Plus Leg Press / Hack Squat (PPD-830) enables seamless transitions between leg press and hack squat exercises.  With adjustable back support, changing between exercises is straight-forward.  Perform seated leg presses or hack squats with multiple starting positions.  Full commercial-quality, the entire Proformance Plus Series of equipment is an ideal option for outfitting any professional weight room, recreation center, apartment complex or commercial fitness facility.

  • Engineered and manufactured in the USA
  • Dual machine for performing leg press and hack squat exercises
  • Solid aluminum foot plates for exercise variation
  • Dual self-aligning 1-1/2″ linear bearing system for smooth movement
  • Back support adjusts upright or flat for either seated or horizontal positioning
  • Control lever for multiple starting positions
  • 400 lbs. steel weight stack (optional 500 lbs. available)
  • Shipped assembled for easier installation and setup
Categories: , , Tags: ,

Description

Spec Sheet - Proformance Plus Leg Press Hack Squat (PPD-830)

The Proformance Plus Leg Press / Hack Squat (PPD-830) by TuffStuff Fitness combines two phenomenal leg training exercises into one convenient unit.  The Proformance Plus Leg Press / Hack Squat includes adjustable back support with upright seated positioning for leg press exercises, and flat horizontal positioning for hack squats.

While leg presses and hack squats work all four of the quadriceps muscles, along with some gluteus maximus (buttocks) and hamstring involvement, their area of emphasis is slightly different.  Generally, the leg press targets the vastus medialis muscle more directly, giving it that coveted teardrop look.  While the hack squat targets the vastus lateralis more directly, contributing to the sweeping fullness that all well developed quads have.  For this reason, combining both exercises into a single Leg Press / Hack Squat machine helps to further define and develop the lower body while saving floor space.

The 400 lbs selectorized weight stack (optional upgrade to 500 lbs stack available) makes adjustments on the Proformance Plus Leg Press / Hack Squat quick and easy.  Back support adjusts upright or flat for either seated (leg press) or horizontal positioning (hack squat).





Proformance Plus Customization

The Proformance Plus Leg Press / Hack Squat finish colors may be customized.  Request a color sample that matches your company’s branding.

Frame Colors:

TuffStuff Proformance Plus Frame Colors

Note: Finishes as shown are close representations of the actual powder coat colors.  Please do not use for an exact color match.  Always request actual color samples from your dealer or TuffStuff Sales Representative.

Upholstery Colors:

Note: Color samples as shown are close representations of the actual vinyl and finish colors, and MUST NOT be used for an exact match of the color.  Always request actual vinyl samples from your dealer or TuffStuff Sales Representative.



Specifications

Weight 930 lbs
Dimensions 84 × 50 × 76 in
Commercial Warranty COMMERCIAL WARRANTY

10 YEARS: Frames, welds, cams and weight plates.

5 YEARS: Pivot bearings, pulleys, bushings, gas-shocks, and guide rods.

1 YEAR: Belts, linear bearings and pull-pin components.

6 MONTHS: Upholstery, cables, finish and rubber grips.

ALL OTHER PARTS not mentioned, one year from the date of purchase to the original purchaser.
Frame Main frame – 2×4” 11-gauge 120 wall oval tubular steel with a combination of 2” round and other 11-gauge tubular steel.

All welded construction conforming with all Structural Welding Code-Steel Standards and Specifications.
Padding High density 1” thick 3 lbs. rebond urethane foam glued to 1” industrial plywood backing, trimmed and formed to exact fit.
Cables & Belts Cable driven units – USA-Made/Certified 3/16” and 1/4” EXERFLEX PRO® high performance fitness cable rated at 4200 lbs. tensile strength. Belt driven units: reinforced Kevlar® belts, rated at 4400 lbs. tensile strength.
Finish Powder coat finish baked at 400ºF and carefully monitored to ensure complete curing.

Custom two tone finish offers choice of six primary colors combined with Charcoal Texture accents. Custom colors available, please inquire with your sales representative.
Upholstery Premium Bolta Sport vinyl with PreFixx, formulated to resist bacteria, stains, mildew, oil and UV stabilized pigments. Meets most flammability test requirements. All upholsteries are double-stitched with “hidden” borders. Bolta Sport color swatches are available upon request. Sixteen standard colors. Custom colors are available – please inquire with your sales representative.
Weight Stack Black painted solid steel weight plates with self aligning low friction sleeves. 400 lbs. weight stack. Does not accept Add-on weight system. (Optional: 500 lbs. available)
Other Specs GUIDE RODS: 3/4” solid steel 1045 (tgp) highly polished hard chrome finish.

ADJUSTMENT PINS: 1/2” and 5/8” push-pull spring loaded solid steel adjustment pins with ultimate load of 9040 lbs. and 46042 psi sheer strength.

BEARINGS: 1” solid stainless steel pivot axles with non-friction 2” sealed bearings (load rating of 2400 lbs.) internally encased on primary pivots, and oil-impregnated bronze bushings on all secondary pivots.

PULLEYS: Combination wide grove fiberglass reinforced nylon pulleys on belt-driven system and solid aluminum pulleys on cable units.

CAMS: Charcoal Texture powder coat solid aluminum variable resistance cam designed specifically for each machine.

FASTENERS: All frame bolts and nuts are 3/8” and 1/2” blue zinc plated grade 8 and up. Meets ANSI specifications.

CUSTOM STABILIZER FEET: Heavy-duty molded rubber base feet insure stability, prevent equipment movement, and may be bolted to the floor.

SELECTOR WEIGHT PINS: Weight pins are solid steel, magnetic with ball-end to ensure a tight connection and secure fit. Coiled lanyard helps prevent pin removal and loss.
