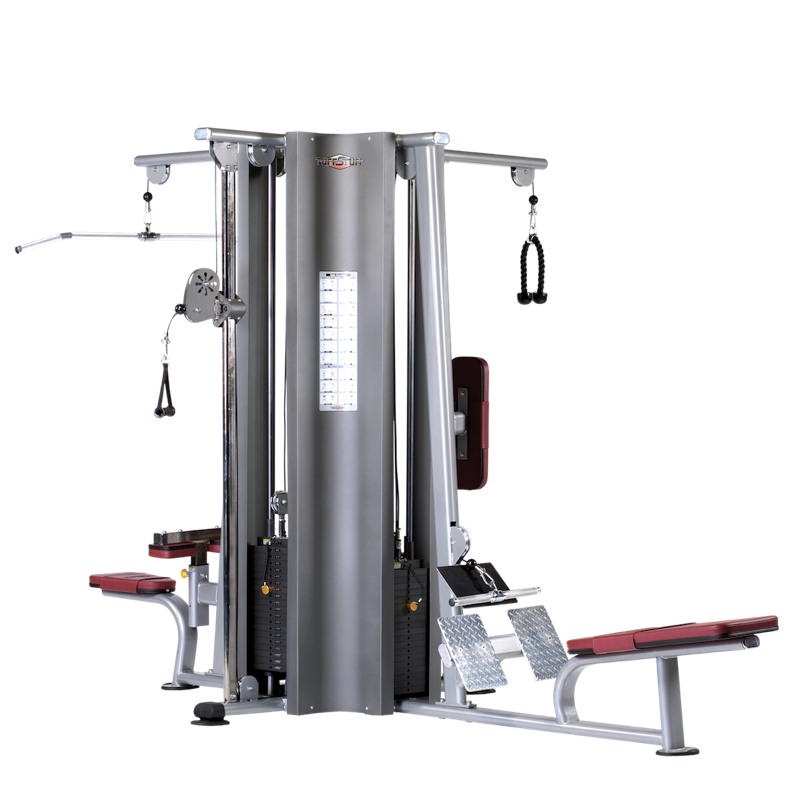

TuffStuff Proformance Plus 4-Station Jungle Gym

Call for Pricing



TuffStuff’s Proformance Plus 4-Station Jungle Gym (PPMS-4000) is a customizable modular system that offers the flexibility to choose the exercise stations and positioning that best suits your facility.  Full commercial quality, designed, engineered and manufactured in Chino, California, USA.  The entire Proformance Plus Series of equipment is crafted from quality materials, an ideal option for outfitting any professional weight room, recreation center, apartment complex or commercial fitness facility.

  • Made in the USA at TuffStuff’s Headquarters in Chino, California
  • Customizable modular system: choose your exercise stations and positioning
  • Includes four exercise stations (shown with Lat Pulldown, Low Row, Tricep Pressdown, & Adjustable High/Low)
  • Four 200 lbs. steel weight stacks. (Optional: 300 lbs. steel weight stacks available)
  • Solid aluminum pulleys with sealed bearings for smooth, friction-free movement
  • Full length protective steel weight shrouds with integrated exercise placards
  • Steel plate corner braces reinforce the main frame for maximum structural stability
  • Swivel handles provide multi-directional, free and natural movements
  • EXERFLEX PRO® high performance fitness cable rated at 4200 lbs. tensile strength
  • Full Commercial Warranty



Categories: , , Tags: ,

Description

Spec Sheet - Proformance Plus 4-Station Jungle Gym (PPMS-4000)



The Proformance Plus 4-Station Jungle Gym (PPMS-4000) is a modular system that includes four 200 lbs. steel weight stacks, with the option to upgrade to 300 lbs. weight stacks.  Highly customizable, the Jungle Gym allows you to choose the exercise stations, positioning, frame and upholstery colors that best suit your facility.

The 4-Station Jungle Gym is designed for full commercial use.  Steel plate corner braces reinforce the main frame for maximum structural stability.  The frame, welds, cams, and weight plates are all backed by TuffStuff’s 10 year Commercial Warranty (view Additional Information section to learn more).

System as shown:  (1) Lat Pulldown; (1) Low Row;  (1) Tricep Pressdown; (1) Adjustable High/Low Station





Proformance Plus Customization

The Proformance Plus 4-Station Jungle Gym finish colors may be customized.  Request a color sample that matches your company’s branding.

Frame Colors:

TuffStuff Proformance Plus Frame Colors

Note: Finishes as shown are close representations of the actual powder coat colors.  Please do not use for an exact color match.  Always request actual color samples from your dealer or TuffStuff Sales Representative.

Upholstery Colors:

Note: Color samples as shown are close representations of the actual vinyl and finish colors, and MUST NOT be used for an exact match of the color.  Always request actual vinyl samples from your dealer or TuffStuff Sales Representative.



Specifications

Weight 1520 lbs
Dimensions 79 × 138 × 90 in
Commercial Warranty COMMERCIAL WARRANTY

10 YEARS: Frames, welds, cams and weight plates.

5 YEARS: Pivot bearings, pulleys, bushings, gas-shocks, and guide rods.

1 YEAR: Belts, linear bearings and pull-pin components.

6 MONTHS: Upholstery, cables, finish and rubber grips.

ALL OTHER PARTS not mentioned, one year from the date of purchase to the original purchaser.
Frame Main frame – 2×4” 11-gauge 120 wall oval tubular steel with a combination of 2” round and other 11-gauge tubular steel.

All welded construction conforming with all Structural Welding Code-Steel Standards and Specifications.
Padding High density 1” thick 3 lbs. rebond urethane foam glued to 1” industrial plywood backing, trimmed and formed to exact fit.
Cables & Belts Cable driven units – USA-Made/Certified 3/16” and 1/4” EXERFLEX PRO® high performance fitness cable rated at 4200 lbs. tensile strength. Belt driven units: reinforced Kevlar® belts, rated at 4400 lbs. tensile strength.
Finish Powder coat finish baked at 400ºF and carefully monitored to ensure complete curing.

Custom two tone finish offers choice of six primary colors combined with Charcoal Texture accents. Custom colors available, please inquire with your sales representative.
Upholstery Premium Bolta Sport vinyl with PreFixx, formulated to resist bacteria, stains, mildew, oil and UV stabilized pigments. Meets most flammability test requirements. All upholsteries are double-stitched with “hidden” borders. Bolta Sport color swatches are available upon request. Sixteen standard colors. Custom colors are available – please inquire with your sales representative.
Weight Stack Black painted solid steel weight plates with self aligning low friction sleeves. Four (4) 200 lbs. steel weight stacks. (Optional: 300 lbs. steel weight stacks available)
Other Specs GUIDE RODS: 3/4” solid steel 1045 (tgp) highly polished hard chrome finish.

ADJUSTMENT PINS: 1/2” and 5/8” push-pull spring loaded solid steel adjustment pins with ultimate load of 9040 lbs. and 46042 psi sheer strength.

BEARINGS: 1” solid stainless steel pivot axles with non-friction 2” sealed bearings (load rating of 2400 lbs.) internally encased on primary pivots, and oil-impregnated bronze bushings on all secondary pivots.

PULLEYS: Combination wide grove fiberglass reinforced nylon pulleys on belt-driven system and solid aluminum pulleys on cable units.

CAMS: Charcoal Texture powder coat solid aluminum variable resistance cam designed specifically for each machine.

FASTENERS: All frame bolts and nuts are 3/8” and 1/2” blue zinc plated grade 8 and up. Meets ANSI specifications.

CUSTOM STABILIZER FEET: Heavy-duty molded rubber base feet insure stability, prevent equipment movement, and may be bolted to the floor.

SELECTOR WEIGHT PINS: Weight pins are solid steel, magnetic with ball-end to ensure a tight connection and secure fit. Coiled lanyard helps prevent pin removal and loss.
