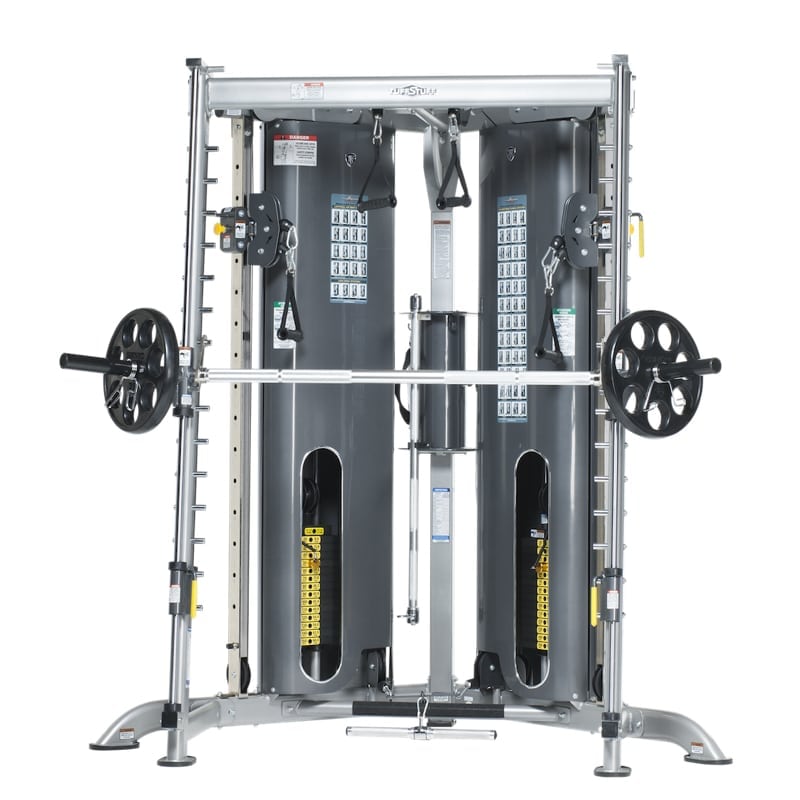

TuffStuff Evolution Corner Multi-Functional Trainer (with Smith Press Attachment)


TuffStuff’s Evolution Corner Multi-Functional Trainer with Smith Press Attachment (CXT-225) features three separate cable stations, offering unlimited exercise options in one space saving, patented and compact corner machine.

The CXT-225 Smith Press attachment bolts onto the Evolution CXT-200 frame structure and base (optional add-on MSRP: $1,389.00).  The Smith Press attachment includes a self-aligning heavy duty press system with angled weight prongs to maximize corner usage.

  • Space-efficient corner design to fit any facility size
  • Includes smith press attachment (CXT-225)
  • 15 Smith press bar catches allow safe heavy plate loaded exercises
  • 3 separate cable stations
  • Quick change trigger-style adjustments
  • TuffStuff’s unique dual resistance ratio
  • Solid steel rotating accessory storage rack
  • Two (150 lbs.) weight stacks (upgradeable to 200 lbs)
  • Light Commercial Warranty


The Evolution Corner Multi-Functional Trainer with Smith Press Attachment (CXT-225) includes a fully adjustable high/low pulley system with a swivel rotating handle, as well as fixed Lat and Low Row stations.  The wide base of the frame is easily accessible for wheelchairs, rehab equipment, workout benches and stability balls.

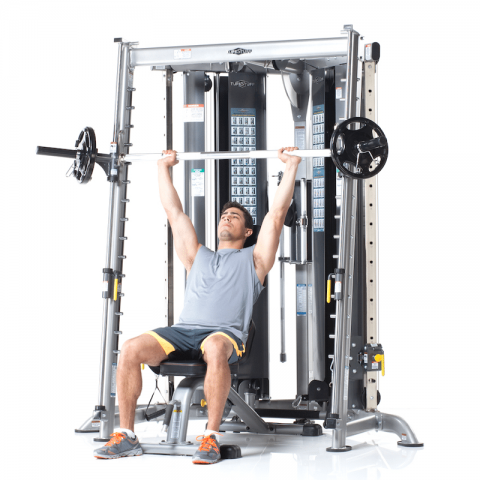

The CXT-225 Smith Press attachment is an optional add-on to the Evolution CXT-200, which bolts onto the frame structure and base (MSRP: $1,389.00).  Fifteen (15) Smith bar catches and safety stops allow heavy plate loaded barbell exercises to be performed safely.  The CXT-225 Press bar can be secured on the highest peg for pull-ups and to allow unrestricted use of the cable stations.

View CXT-200 Owner’s Manual >

View CXT-225 Owner’s Manual >



  • Three separate cable stations offering unlimited exercise options
  • Space saving and compact, designed to fit in a corner
  • Combination dual adjustable cable station with quick change trigger style adjustments

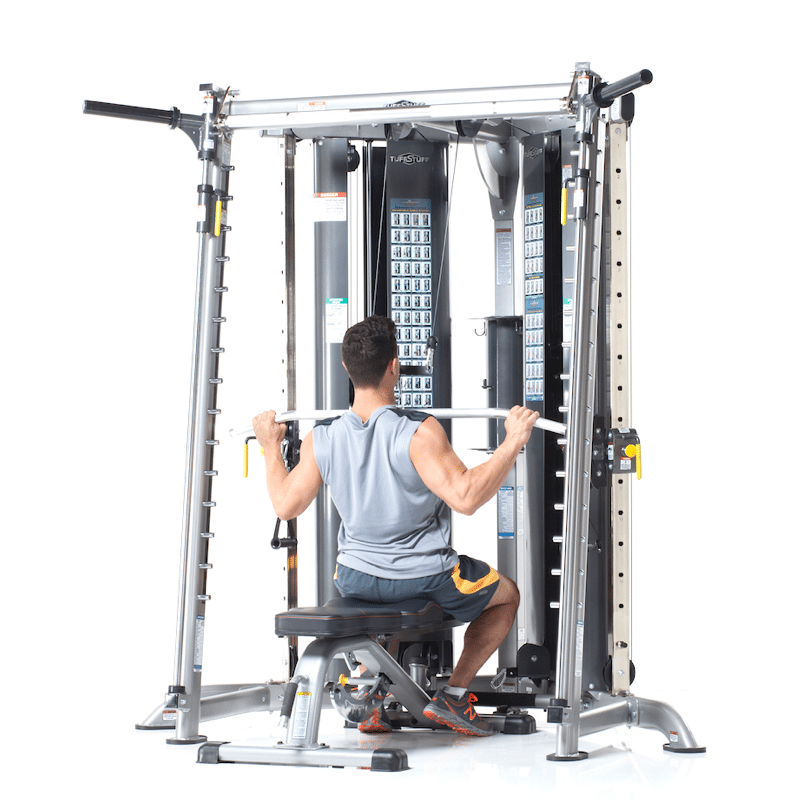

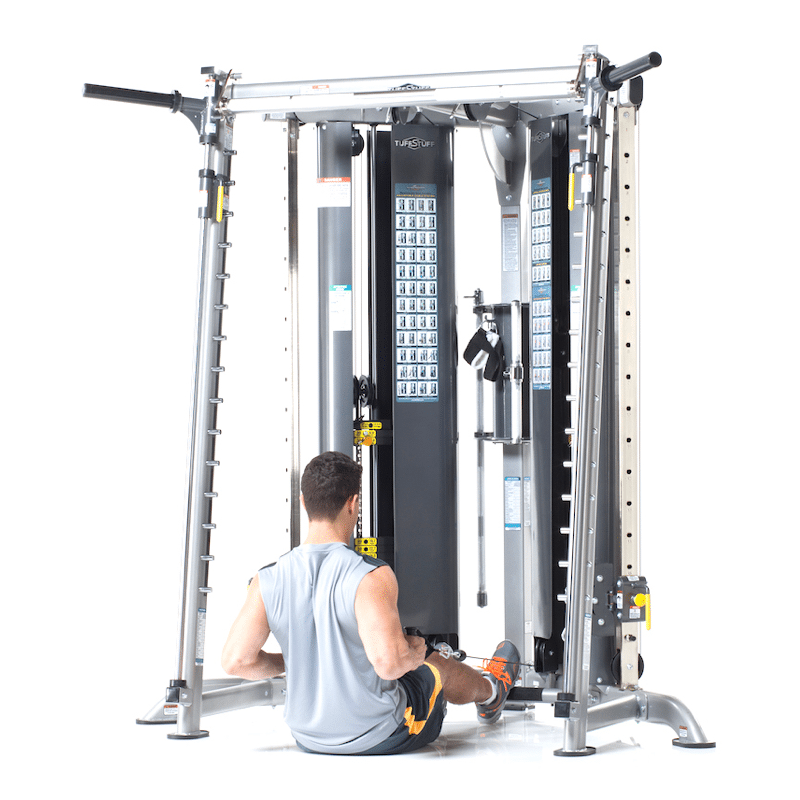

  • Includes Fixed Lat and Low Row cable stations
  • Features TuffStuff’s unique dual resistance ratio at the handle provides single cable hook-up at 1/4 resistance or dual cable hook-up at 1/2 resistance.
  • Solid steel rotating accessory storage rack for lat bar, low row bar, squat bar, nylon handles, ankle strap and cable bridge bracket.
  • Includes Two 150 lbs. steel weight stacks (optional upgrade to 200 lbs.)
  • Includes CXT-225 Smith Press attachment (MSRP: $1,389.00)

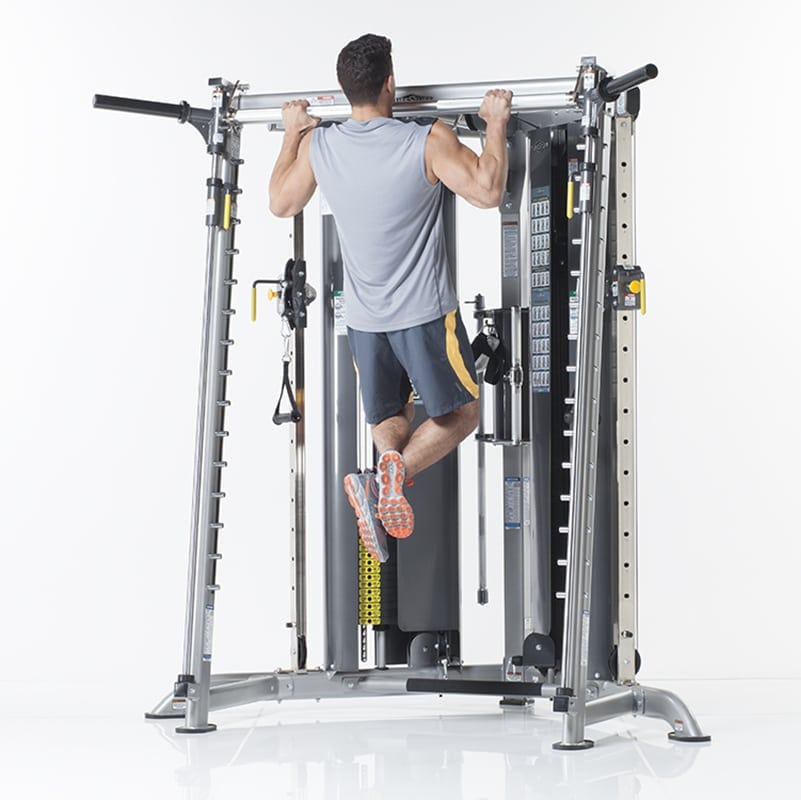

  • Smith Press bar can be secured on the highest peg for pull-ups
  • Fifteen (15) Smith bar catches allow safe heavy plate loaded barbell exercises



Since 1971 TuffStuff Fitness International has focused on one thing, the design and development of premium strength equipment.

Over the last five decades, TuffStuff has manufactured the highest quality strength equipment and set the industry standards against which all other equipment is measured.  TuffStuff’s craftsmanship is recognized worldwide, and their products are sold across the United States, Canada, Mexico and in more than thirty other countries.

Today TuffStuff is the only fitness company in the United States with a full-service manufacturing facility, capable of producing every product they sell.  Every design and engineering process begins in Chino, California – from concepts to prototypes, testings and design refinements.  As a result, TuffStuff has greater flexibility to customize products, faster turn around times, and maintains a higher level of quality control than competitors.

TuffStuff’s light commercial strength equipment is built to the same exacting standards as their full commercial-grade products, with 11-gauge tubular steel, inert-gas MIG welded construction, and certified USA-made cables.  Whether you are looking for a complete multi-gym, or you just need a single equipment station that will stand the test of time, with TuffStuff you will receive unmatched product quality and exceptional support.



Weight 922 lbs
Dimensions 66 x 79 x 84 in

10 YEARS: Structural main frames, welds, cams and weight plates.
5 YEARS: Pivot bearings, pulleys, bushings, guide rods and gas shocks.
1 YEAR: Cables, linear bearings and pull-pin components.
6 MONTHS: Upholstery, finish and rubber grips.
ALL OTHER PARTS not mentioned, one year from the date of purchase to the original purchaser.

Light Commercial Use: Light Commercial warranty applies only to facilities like hotels, apartment complexes, personal training studios, fire & police stations, etc. where the equipment would be used by no more than 30 people per day.

Weight Stacks Two (2) 150 lbs. steel weight stacks (optional upgrade to 200 lbs. available)
Frame 2 x 3” 11-gauge oval tubular steel frames with a combination of 2 x 2” round tubing.

All welded construction conforming to Structural Welding Code-Steel Standards and Specifications.

All frame bolts and nuts are 3/8” and 1/2” zinc oxide. Meets ANSI specifications.

Finish Powder coat finish – Platinum Sparkle main frame and Cathedral Gray weight stack protective shields.
Other Specs 3/16” and 1/8” USA-Made/Certified EXERFLEX PRO® high performance fitness cable.

3/4” solid steel 1045 (tgp) hard chrome rods.

1/2” push-pull spring loaded solid steel adjustment pins with ultimate load of 9040 lbs. and 46042 psi sheer strength.

All primary and secondary pivot assemblies are non-friction 2″ sealed bearings and 1″ solid steel pivot axles.

TuffStuff’s proprietary “flat-groove” 4-1/2” and 3-1/2” fiberglass-impregnated nylon pulleys with sealed roller bearings.
