Description

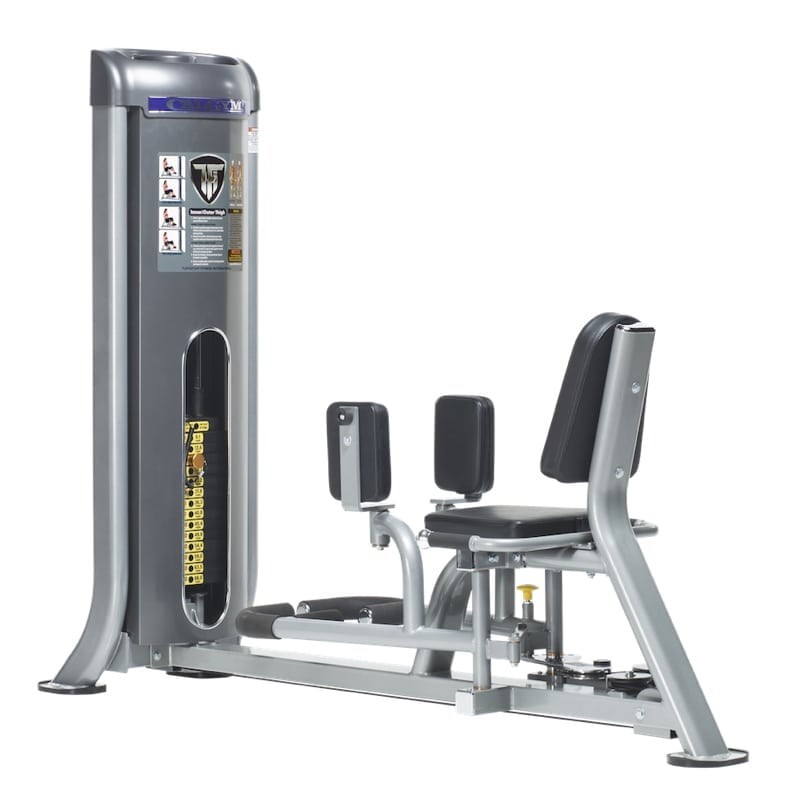

The CalGym Inner / Outer Thigh (CG-9515), also referred to as an “Abductor” machine, is used to tone, shape and strengthen muscles of the legs and hips. Built with commercial-grade materials, the CalGym Inner / Outer Thigh is specifically manufactured to meet the demands of hotel fitness centers, school weight rooms, apartment building gyms and even commercial gyms.
| Weight | 415 lbs |
|---|---|
| Dimensions | 75 x 60 x 59 in |
| Commercial Warranty | COMMERCIAL WARRANTY*
10 YEARS: Structural main frames, welds, cams and weight plates. 5 YEARS: Pivot bearings, pulleys, bushings and guide rods. 1 YEAR: Pull-pin components and rail wheels. 6 MONTHS: Upholstery, cables, finish and rubber grips. ALL OTHER PARTS not mentioned, one year from the date of purchase to the original purchaser. * Not recommended for membership based or dues paying facilities – call your sales representatives for details. |
| Frame | Heavy duty 2” x 4” 11-gauge oval steel frames with a combination of 2” round tubing. |
| Technical Specifications | FRAME MATERIALS: Heavy duty 2” x 4” 11-gauge oval steel frames with a combination of 2” round tubing. WELDS: All welded construction by inert-gas MIG welding conforming with all Structural Welding Code-Steel Standards and Specifications. FINISH: Eight-step electrostatically applied powder coat finish. FRAME COLORS: Main frame: Platinum Sparkle and Charcoal accents (custom colors available for additional charge). UPHOLSTERY: Premium grade naugahyde formulated to resist bacteria, stains, mildew and oil. Meets most flammability test requirements. Standard two-tone (Black/Cadet) and double-stitched with “hidden” borders. Custom colors (one-tone) are available – inquire with your sales representative. PADDING: High density EMR Urethane foam padding with double-stitched upholstery (black) secured to 3/4” plywood backing. ADJUSTMENT PINS: 1/2” push-pull spring loaded solid steel adjustment pins with ultimate load of 9040 lbs. and 46042 psi sheer strength. BEARINGS: Sealed 2” roller bearings and 1” diameter solid steel axle encased in machined housing on all primary pivot points. GUIDE RODS: 3/4” solid steel 1045 (tgp) highly polished chrome-plated finish. CABLES: 2200 lbs. test 3/16” military-spec nylon coated cable. PULLEYS: 4-1/2” and 3-1/2” fiberglass-impregnated nylon pulleys with double sealed roller bearings. SELECTOR WEIGHT PINS: Solid steel, magnetic with ball-end to ensure a tight connection and secure fit. Coiled lanyard helps prevent pin removal and loss. FASTENERS: All frame bolts and nuts are 3/8” and 1/2” zinc plated. Meets ANSI specifications. WEIGHT STACK: Steel weight stack enclosures with decorative built-in storage compartment cover. |
| Cables | 3/16″ USA-Made/Certified EXERFLEX PRO high performance cable.
4-1/2” and 3-1/2” diameter fiberglass reinforced nylon pulleys with sealed bearings enclosed in protective steel covers. |
| Padding | High density EMR Urethane foam padding with double-stitched upholstery (black) secured to 3/4” plywood backing. |
| Finish | Powder coat finish in Platinum Sparkle with Charcoal accents (custom color available for additional charge). |
| Weight Stack | 150 lbs. steel weight stack. Steel weight stack enclosures with decorative built-in storage compartment cover |
| Other Specs | Sealed 2” roller bearings and 1” diameter solid steel axle encased in machined housing on all primary pivot points.
3/4” precision ground, hard chrome finish, solid steel guide rods. Thermoplastic rubber handgrips secured with aluminum end caps for durability and improved feel. Protective rubber stabilizer feet with anchoring holes provided on all machines. |
CALGYM CUSTOMIZATION
For all CalGym products, the finish colors, upholstery and embroidered wear covers may be personalized (add your logo) to further enhance your company name.
TUFFSTUFF COMMERCIAL STRENGTH
Since 1971 TuffStuff Fitness International has focused on one thing, the design and development of premium strength equipment.
Over the last five decades, TuffStuff has manufactured the highest quality strength equipment and set the industry standards against which all other equipment is measured. TuffStuff’s craftsmanship is recognized worldwide, and their products are sold across the United States, Canada, Mexico and in more than thirty other countries.
Today TuffStuff is the only fitness company in the United States with a full-service manufacturing facility, capable of producing every product they sell. Every design and engineering process begins in Chino, California – from concepts to prototypes, testings and design refinements. As a result, TuffStuff has greater flexibility to customize products, faster turn around times, and maintains a higher level of quality control than competitors.
TuffStuff’s commercial strength equipment is built to exacting standards, with full commercial-grade components including 11-gauge tubular steel, inert-gas MIG welded construction, and certified USA-made cables. Whether you are looking to outfit the world’s finest health club, or you just need a single equipment station that will stand the test of time, with TuffStuff you will receive unmatched product quality and exceptional support.
