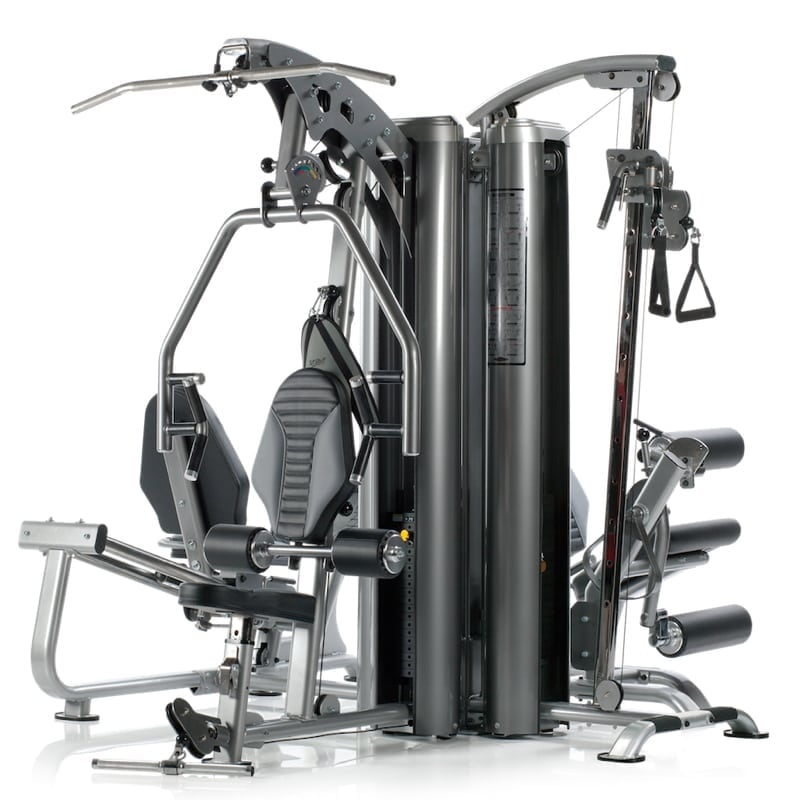

For nearly three decades, the TuffStuff Apollo Series has set the industry standard against which all other multi-stack gym systems have been measured. The Apollo 7400 4-Station Multi Gym (AP-7400) continues this legacy with (4) independent modular units, (4) 200lbs. steel weight stacks, and nine exercise stations featuring over 60 different exercises.
The ultimate 4-weight stack multi-gym complete with all four modular units:
Length x Width x Height: 112 x 95 x 84 in / 284 x 241 x 213 cm
Apollo 7400 Weight: 1885 lbs / 855 kgs
TUFFSTUFF LIGHT COMMERCIAL STRENGTH
Since 1971 TuffStuff Fitness International has focused on one thing, the design and development of premium strength equipment.
Over the last five decades, TuffStuff has manufactured the highest quality strength equipment and set the industry standards against which all other equipment is measured. TuffStuff’s craftsmanship is recognized worldwide, and their products are sold across the United States, Canada, Mexico and in more than thirty other countries.
Today TuffStuff is the only fitness company in the United States with a full-service manufacturing facility, capable of producing every product they sell. Every design and engineering process begins in Chino, California – from concepts to prototypes, testings and design refinements. As a result, TuffStuff has greater flexibility to customize products, faster turn around times, and maintains a higher level of quality control than competitors.
TuffStuff’s light commercial strength equipment is built to the same exacting standards as their full commercial-grade products, with 11-gauge tubular steel, inert-gas MIG welded construction, and certified USA-made cables. Whether you are looking for a complete multi-gym, or you just need a single equipment station that will stand the test of time, with TuffStuff you will receive unmatched product quality and exceptional support.
|Dimensions||112 x 95 x 84 in|
|Light Commercial Warranty||LIGHT COMMERCIAL WARRANTY
10 YEARS: Structural main frames, welds, cams and weight plates.
Light Commercial Use: Light Commercial warranty applies only to facilities like hotels, apartment complexes, personal training studios, fire & police stations, etc. where the equipment would be used by no more than 30 people per day.
|Frame||Main frame – 2×3” 11-gauge oval tubular steel with a combination of 2×2” round tubing.
All welded construction by inert-gas MIG welding conforming with all Structural Welding Code-Steel Standards and Specifications.
|Finish||Eight-step electrostatically applied powder coat finish.
Main frame: Platinum Sparkle Accent: Cathedral Gray
|Upholstery||Premium grade naugahyde formulated to resist bacteria, stains, mildew and oil. Meets most flammability test requirements. Standard two-tone (Black/Cadet) and double-stitched with “hidden” borders. Custom colors (one-tone) are available – inquire with your sales representative.|
|Padding||High density 2” thick rebond urethane foam glued to 1” industrial plywood backing, trimmed and formed to exact fit.|
|Cables||2,200 lbs. test 3/16” military-spec nylon coated cable.|
|Weight Stack||(4) Independent Weight Stacks: black painted solid steel weight plates (200 lbs.) with self aligning low friction sleeves.|
|Other Specs||ADJUSTMENT PINS: 1/2” push-pull spring loaded solid steel adjustment pins with ultimate load of 9040 lbs. and 46042 psi sheer strength.
BEARINGS: 1” solid steel pivot axles with non-friction 2” sealed bearings (load rating of 2400 lbs.) internally encased on primary pivots, and oil-impregnated bronze bushings on all secondary pivots.
GUIDE RODS: 3/4” solid steel 1045 (tgp) highly polished chrome-plated finish.
PULLEYS: 4-1/2” and 3-1/2” fiberglass-impregnated nylon pulleys with double sealed roller bearings.
SELECTOR WEIGHT PINS: Solid steel, magnetic with ball-end to ensure a tight connection and secure fit. Coiled lanyard helps prevent pin removal and loss.
FASTENERS: All frame bolts and nuts are 3/8” and 1/2” zinc plated. Meets ANSI specifications.
