Description

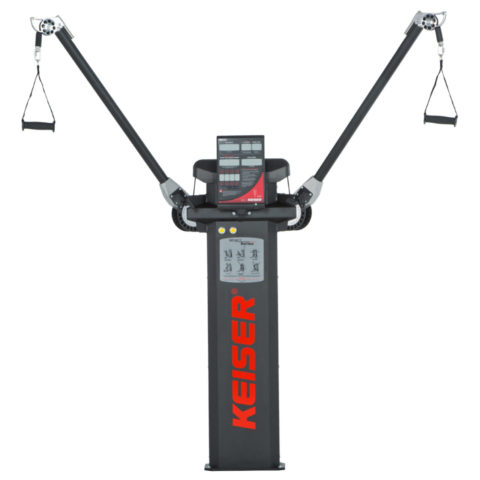

The Functional Trainer represents the core machine within the Infinity Series. As the name implies, it is a multi-functional machine for a complete body workout. It can be used for hundreds of different exercises, ranging from rehabilitation to sports-specific applications and is one of the most basic and versatile cable machines available. The ability to train at any speed and without any impact makes it the product of choice for many different applications. With its space-saving design, the unit is available with or without a base. (Units without base must be bolted directly and securely to the floor.)

The Functional Trainer features two adjustable arms, which can be adjusted for virtually any training position. Each pulley swings independently of the machine to match the line of pull. In addition to its already space-saving design, the unit can either stand alone or be floor mounted.

• • • • Complete control of resistance levels
      • Smooth pneumatic resistance to reduce shock loading to connective tissues and joints
      • Takes up less space and time with a small footprint and multi-user pieces that allow group training
      • Unlimited possibilities for training – any load, any speed, any plane
      • Versatility that allows you to customize your workout
      • ADA Compliant – Section 44 Disable Access Tax Credit

Installation Options
OPTION ONE: FUNCTIONAL TRAINER FLOOR MOUNT	OPTION TWO: FUNCTIONAL TRAINER FREE STANDING MOUNT
SPECIFICATIONS HEIGHT ARMS UP 89” / 2261 mm HEIGHT ARMS DOWN 59” / 1497 mm WIDTH ARMS OUT 95” / 2413 mm BASE WIDTH 32” / 813 mm DEPTH 24” / 610 mm WEIGHT 130 lbs / 59 kg The Functional Trainer Floor Mount Base Plate connects the Functional Trainer directly to the facility floor. It comes complete with the concrete anchoring kit and instruction on how to secure the plate to the concrete.*	SPECIFICATIONS HEIGHT ARMS UP 92” / 2337 mm HEIGHT ARMS DOWN 62” / 1575 mm WIDTH ARMS OUT 95” / 2413 mm BASE WIDTH 84” / 2134 mm DEPTH 47” / 1194 mm WEIGHT 300 lbs / 136 kg The Functional Trainer Free-Standing Mount is available for stand-alone use and aligns with the Functional Trainer’s space-saving design.

Download Product Brochure

Accessories – Standard
CABLE HANDLE The Keiser Cable Handle has an impact resistant ABS body with soft and grippy rubber. It is overmolded as one unit and uses military specied strapping.
Accessories – Optional
3′ KEISER CHOP BAR	BACK/LAT STRAP	FUNCTIONAL TRAINER BASE EXTENSION
The 3’ Keiser Chop Bar is constructed of a knurled lightweight Aluminum tubing. Heavy duty bearings and military specied strapping combine to allow maximum freedom to move this bar without creating wear at the attachment point on either end. Testing has proven this mechanism will outlast all.	The Keiser Back/Lat Strap has a impact resistant ABS body with soft and grippy rubber. It is overmolded as one unit and uses military specied strapping. 2’ long from handles to d-ring 4’ from handle to handle.	The Functional Trainer Base Extension is a floor mounted attachment that elevates all of the arm positions to a higher vertical position by 12 inches. This was designed to be used by taller people to get full range of motion on their exercises.
FUNCTIONAL TRAINER FLOOR MOUNT	FUNCTIONAL TRAINER FREE STANDING MOUNT	PRO ANKLE CINCH STRAP
The Functional Trainer Floor Mount is available to mount the unit directly to the facility floor. THE FLOOR MOUNTED BASE WILL NEED TO BE BOLTED DIRECTLY TO THE FLOOR.	The Functional Trainer free standing mount is available for stand-alone use and aligned with the equipment’s space saving design. THE FREESTANDING BASE DOES NOT NEED TO BE BOLTED TO THE FLOOR.	Designed to easily attach to Infinity machines for abductor and adductor work, the Pro Ankle Cinch Strap is made of 4 1/2” wide nylon and thick neoprene padding. Equipped with a steel D-ring, it fits around ankles of all sizes
THIGH STRAP	TRICEPS ROPE	WAIST BELT
Made of 4 1/2” wide nylon and thick neoprene padding, the Pro Thigh Cinch Strap attaches to an Infinity Series machine for glute, hamstring, quad and hip flexor work.	The Keiser Triceps Rope has low-friction POM end caps and a Keiser branded curved connector designed to increase the life of the polypropylene rope and make it more aesthetically pleasing. 3’ long x 1” diameter PolyPropylene rope.	With a 4 1/2” nylon cinch strap and neoprene padding, the waist belt is equipped with dual steel D-rings to accommodate up to a 44” waist.
